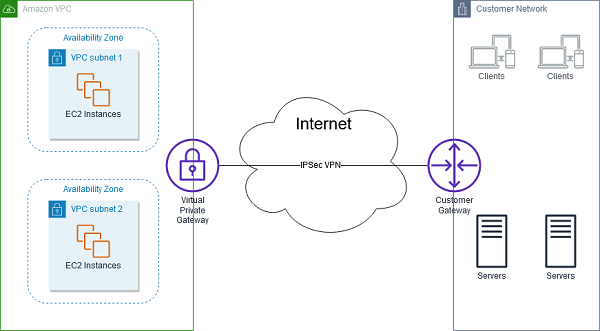

Implementing a VPN connection in a Virtual Private Cloud (VPC) involves setting up a secure connection between your on-premises network or another network and the VPC in a cloud provider, such as AWS or Google Cloud. Here’s a step-by-step guide on how to implement a VPN connection in a VPC, specifically using AWS as an example:
1. Create a Virtual
Private Gateway
- Go to the VPC
Console in AWS.
- In the left-hand
navigation pane, click on Virtual Private Gateways.
- Click on Create
Virtual Private Gateway and provide a name.
- Attach the
Virtual Private Gateway to your VPC by selecting it, then choosing Actions >
Attach to VPC.
2. Create a Customer
Gateway
- In the VPC
Console, click on Customer Gateways.
- Select Create
Customer Gateway.
- Choose the IP
address of your on-premises router or firewall that will be used for the VPN
connection.
- Provide a name
and ASN (if applicable) and save it.
3. Configure the VPN
Connection
- Go to VPN
Connections in the VPC Console.
- Select Create VPN
Connection.
- Choose the
Virtual Private Gateway you created earlier.
- Select the
Customer Gateway.
- Define the route
options (either static or dynamic) based on your needs.
- Save and wait for
the VPN to be created.
4. Download the
Configuration
- Once the VPN is
created, download the VPN configuration file.
- This file
contains details that are necessary for configuring your on-premises device
(e.g., Cisco, Juniper, or generic VPN configuration).
5. Configure
On-Premises VPN Device
- Use the
downloaded configuration file to configure your on-premises VPN device.
- This step varies
depending on the device type, but essentially involves setting up IPSec
tunnels, shared keys, and route configurations as specified in the file.
6. Update VPC Route
Tables
- In the VPC
Console, go to Route Tables.
- For each subnet
that you want to route through the VPN, edit the route table.
- Add a route to
direct traffic to the remote network via the Virtual Private Gateway.
7. Test the VPN
Connection
- Once configured,
test connectivity by pinging resources within the VPC or using other network
diagnostics to confirm that the VPN connection is established and secure.
This setup secures data by encrypting it over the internet,
allowing secure and controlled access to resources in the VPC from your
on-premises network.
